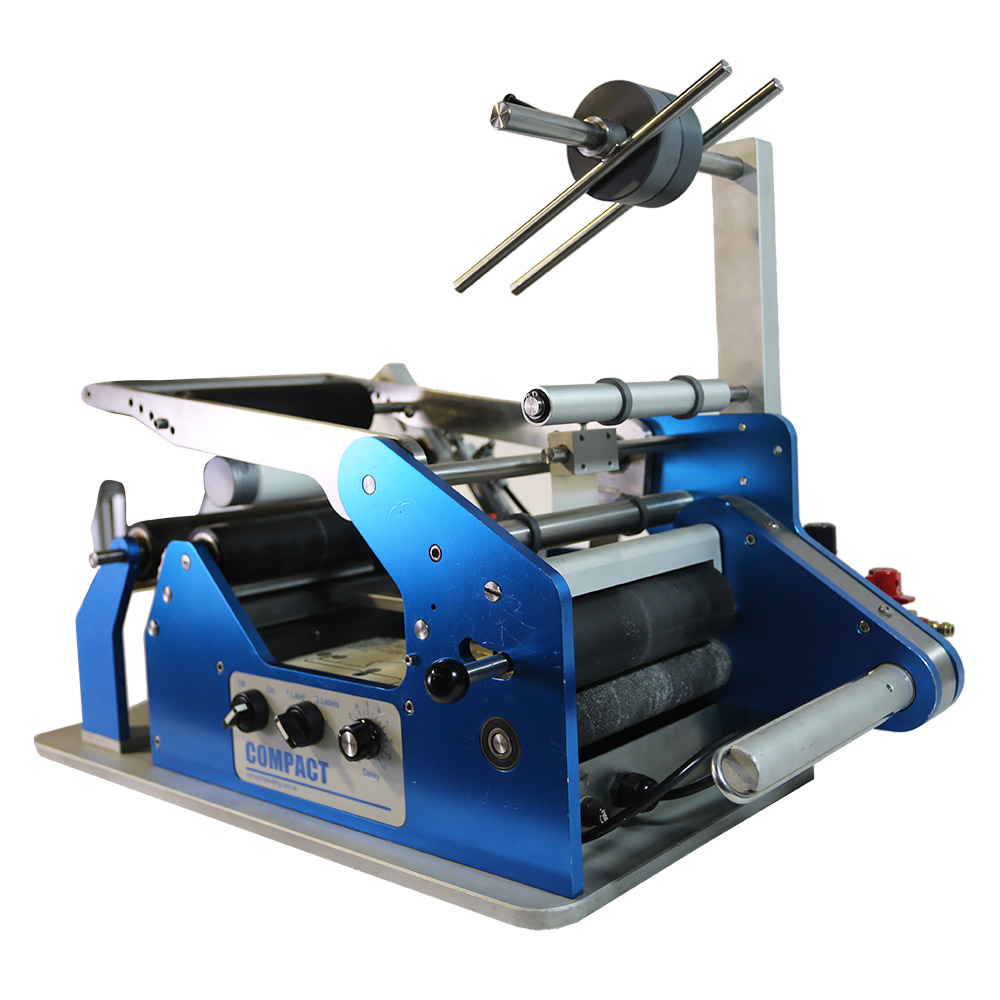

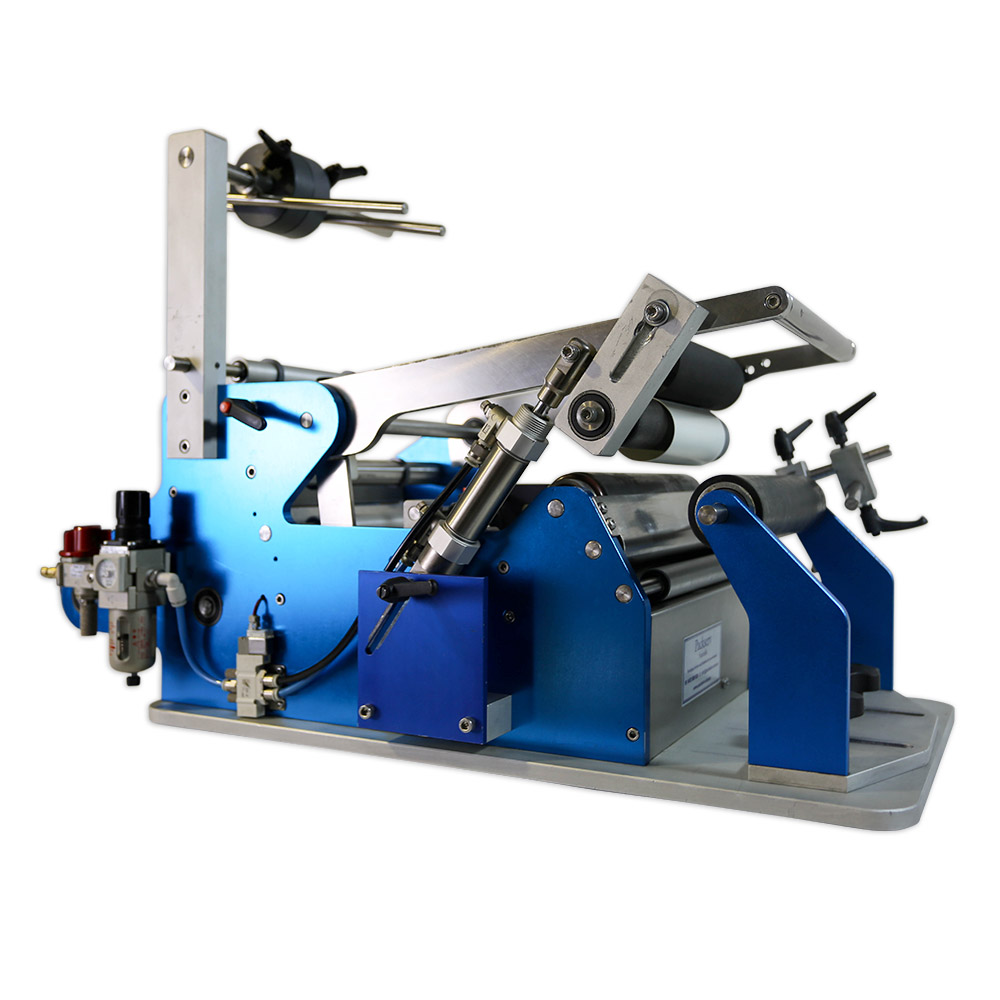

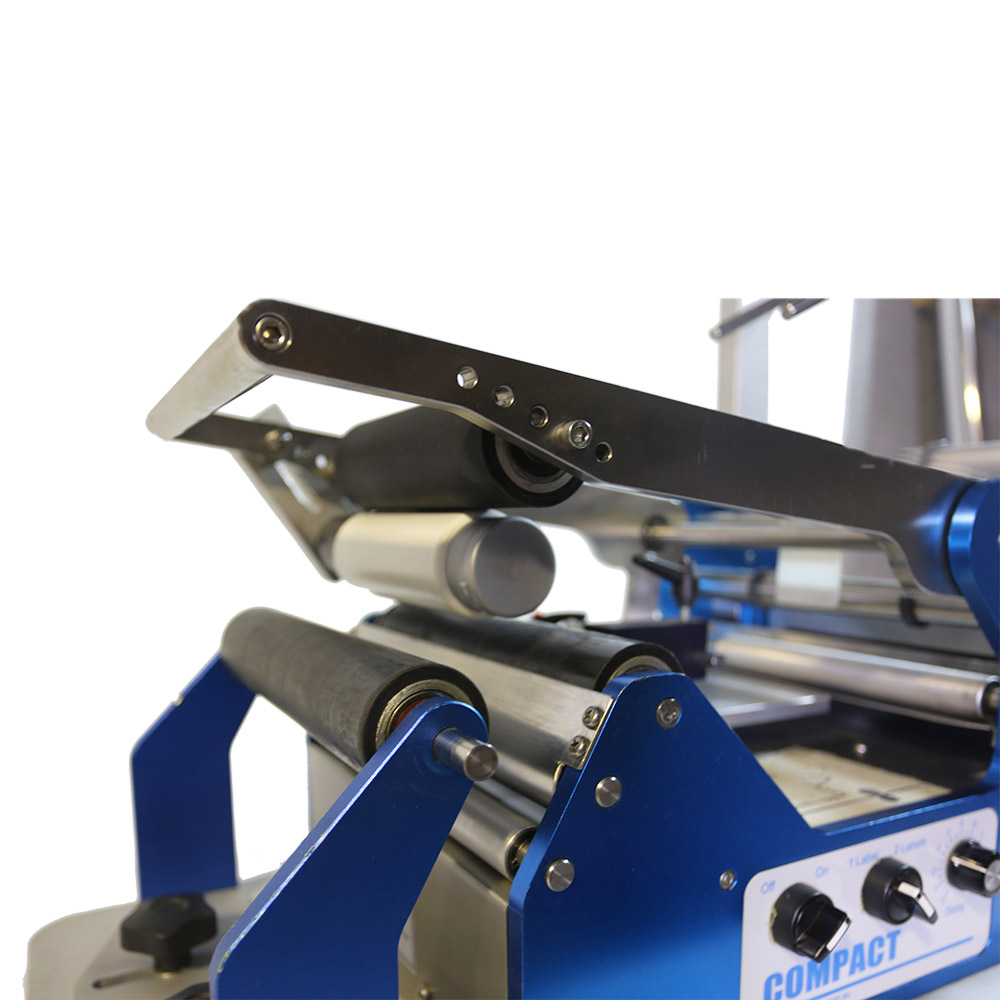

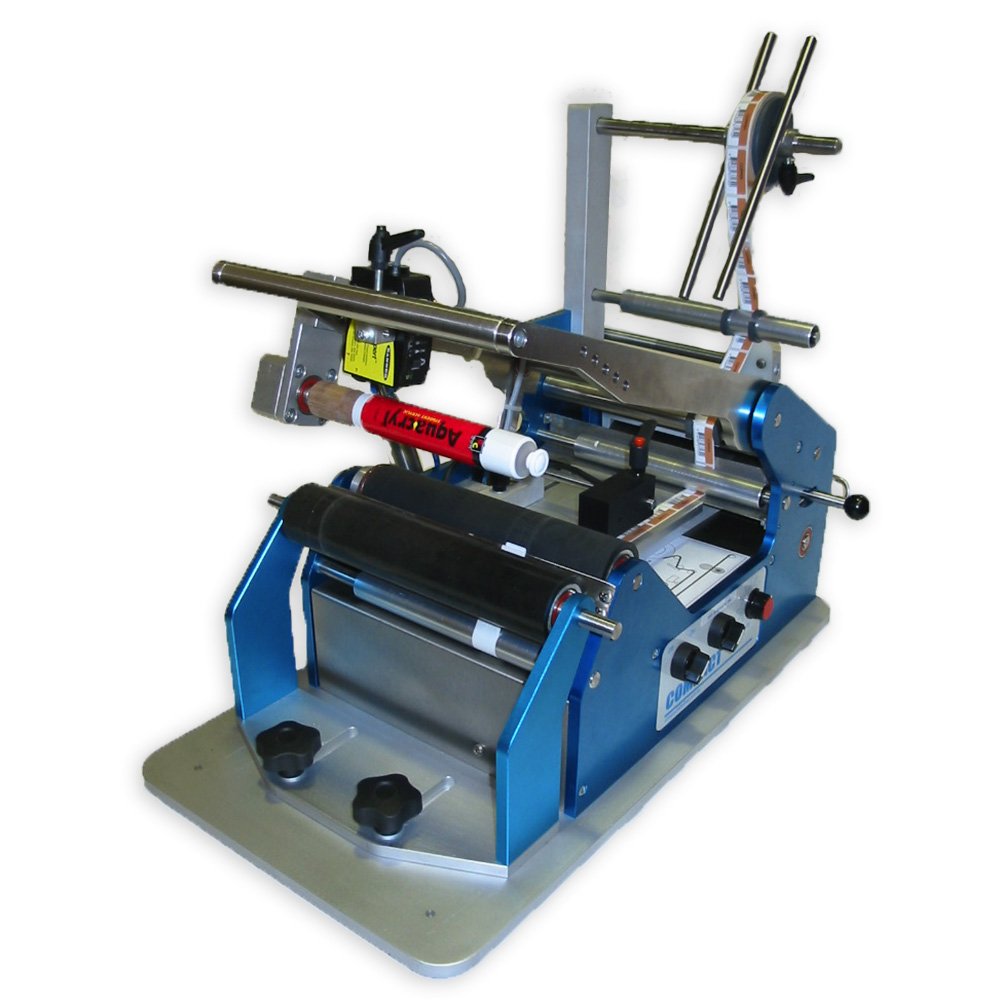

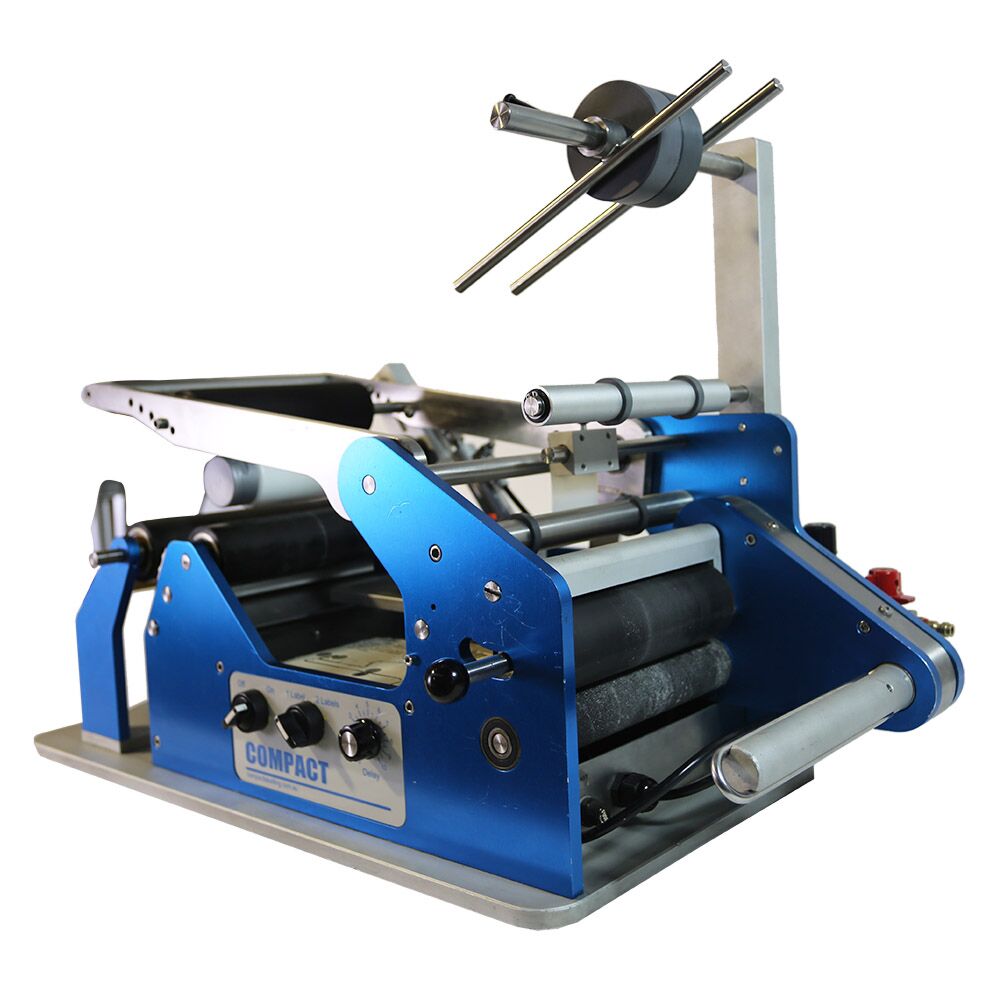

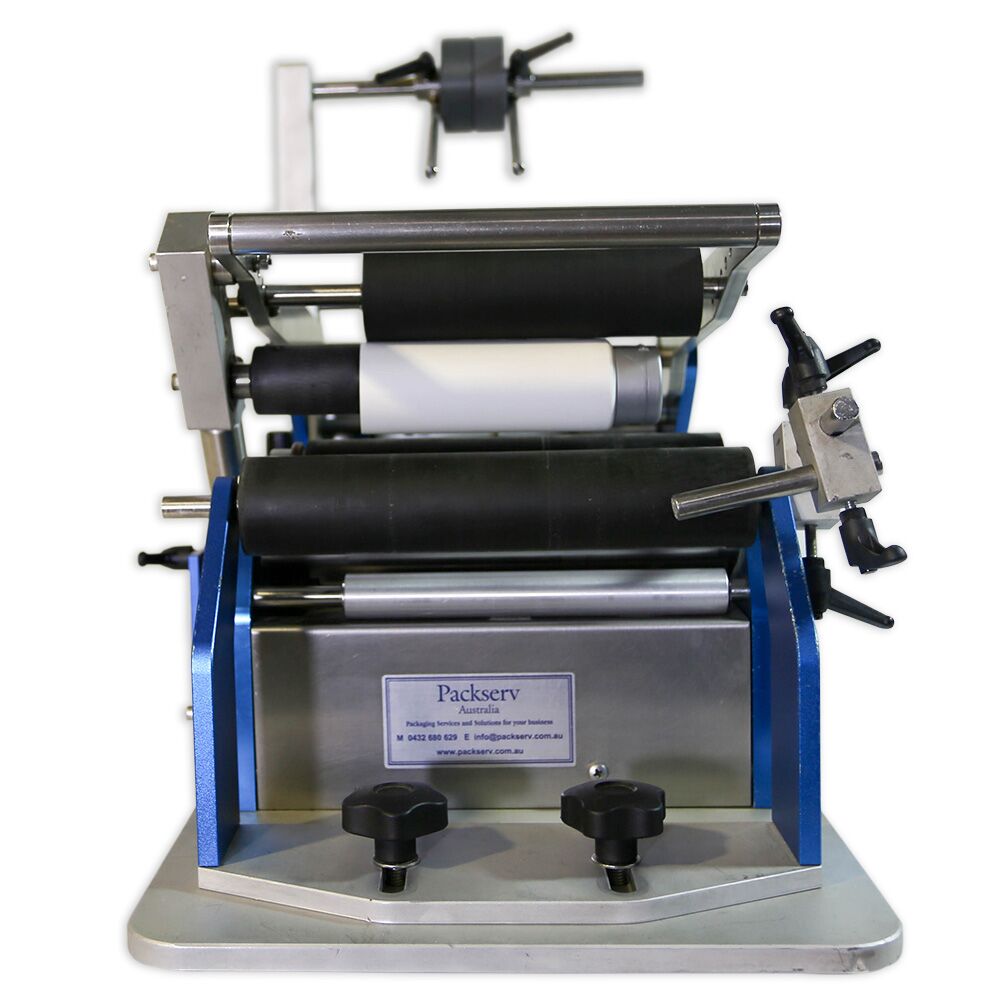

Labelling Machine – Benchtop Tube Labeller

The CP-SAL-T Benchtop Tube Labeller is Compact’s semi-automatic wrap-around tube labelling machine. It has been designed to be robust yet portable and offers the ability to label one or two labels onto a straight-sided tube.

Containers can be round or cylindrical in shape, and due to the manoeuvrable front roller can also have a slight taper.

This machine is very simple to operate and set up, and unlike other semi automatic Labellers it rewinds the backing paper as you work – removing potential fire and safety hazards. All die-cut labels, whether they are clear, opaque or metallic, are able to be applied with the CP-SAL-T.

This machine is semi-automatic, so an operator must place a container onto the machine where a photoelectric sensor picks up the container and then automatically applies the label(s). Once this action is complete, the operator removes the container and inserts another one.

The CP-SAL-T Benchtop Tube Labeller requires both electricity and compressed air to operate.

See Also: Labelling Machines | Packserv Australia

Machine Width	360mm
Machine Height	720mm
Machine Length	Weight
20Kgs approx	Maximum Label Height
180mm	Max Roll Diameter
Max Roll Diameter	300mm
Label Core Size	76mm
Standard Label Length Range	15mm – 220mm (Can be programmed for long labels)
Power Requirements	240V 10Amp & Compressed Air
Output	10-15 units per minute

Make	Compact Labelling
Automatic Function	Semi-Automatic
Mounting	Benchtop
Label Type	Wrap Around Label

Label Waste removal – Incorporating a backing paper take up roller, all the waste is accumulated in a tidy roll for easy disposal
Easy to set up – within a couple of minutes a new job can be set up and running, increasing productivity immediately
Simple to operate – almost no skill or training is required to obtain an excellent result
Robust, heavy duty construction – The machine is designed for years of trouble free and maintenance free productivity
Fully Adjustable – Tool-less adjustment accommodating a wide range of different container sizes including extra long and large containers
Front & Back labels able to be applied
Can be used in conjunction with an Ink Jet Coder to code labels pre-application
Round and near-round containers
No problem with clear, opaque and metallic labels
Requires air and power
Suitable for food and pharmaceutical use
Quick change over of container or parts
Stainless steel and aluminum construction
Adjustable label position while running
Each different sized tube requires a mandrel – these can be custom made
Applies front and back labels in short two stop process
Labels to be on a roll, self-adhesive, die-cut & weeded with left-hand edge lead strongly preferred
