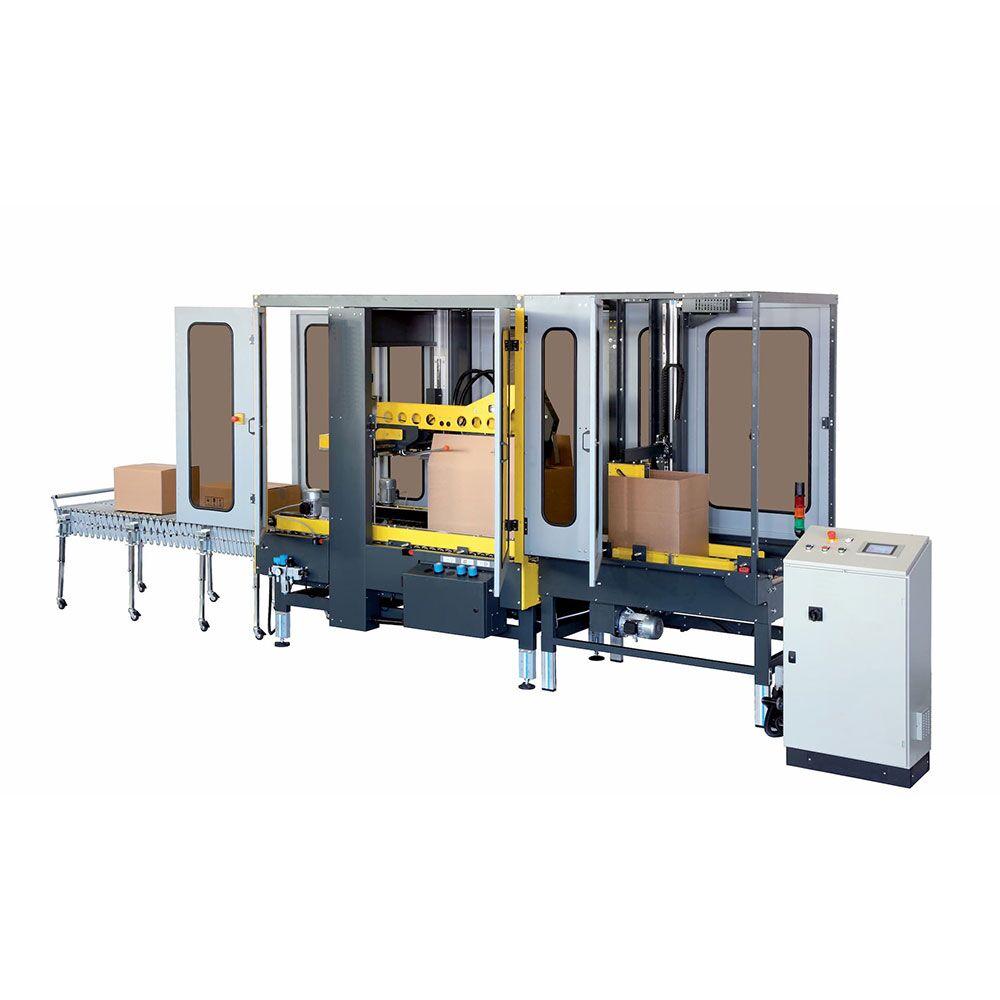

Fully Automatic Random Carton Sealing for High-Performance Packaging Lines
Designed for automated packaging lines, the SM44-HS can process cartons in random formats without requiring an operator to manually adjust the machine between different box sizes. An automatic four-flap folding system closes the top major and minor flaps before the carton is sealed.
The SM44-HS combines automatic carton adjustment, four-flap folding, carton sensing and centring, side-drive belts and automatic top-and-bottom taping to provide a highly automated carton sealing solution.
The range is particularly suited to businesses handling multiple carton sizes, where frequent manual changeovers could otherwise reduce productivity.
SIAT also offers the SM446-HS, a larger-format version designed for larger cartons and providing a maximum carton size of up to 800 × 650 × 650 mm, compared with up to 600 × 500 × 500 mm for the standard SM44-HS configuration.
Machine Overview
- Fully automatic random case sealer
- Automatic carton size adjustment
- Automatic four-flap folding
- Simultaneous top and bottom carton sealing
- Dual 75 mm side-drive belts
- Automatic carton height detection
- Integrated centring, sensing and indexing
- Up to 10 cartons per minute on the SM44-HS
- Up to 8 cartons per minute on the larger SM446-HS
- Standard 50 mm taping units
- Optional 75 mm taping units
- Designed for RSC, HSC and FEFCO 0201 cartons
- Suitable for random, fixed-format and bypass applications
- PLC-controlled communication for packaging-line integration
- CE-compliant safety protection
Key Features of the SIAT SM44-HS
Fully Automatic Random Carton Adjustment
One of the key advantages of the SM44-HS is its ability to automatically adjust to different carton dimensions.
This makes the machine particularly valuable for production environments where cartons of different sizes are processed on the same packaging line. The automatic adjustment eliminates the need for continuous manual changeovers between random carton formats.
Automatic Four-Flap Folding
The integrated four-flap folding system automatically closes the carton’s top major and minor flaps.
This removes the need for an operator to manually fold the carton flaps before sealing, helping create a continuous automated packaging process.
Automatic Top and Bottom Sealing
The SM44-HS applies adhesive tape to the top and bottom of the carton, creating a secure closure ready for conveying, storage and transport.
The standard configuration uses two K11 taping units for 50 mm tape, with optional K12 units available for 75 mm tape.
Dual Side-Drive Belts
The machine uses two 75 mm side-drive belts to transport cartons through the sealing process.
The belts operate at up to 30 metres per minute, supporting efficient carton movement through the machine.
Automatic Carton Height Detection
An electro-pneumatic detection system identifies carton height and allows the upper sealing system to automatically position itself according to the carton being processed.
This is an important part of the machine’s random-format capability.
Centring and Indexing System
The SM44-HS incorporates an indexing system with carton holding functionality, together with centring and sensing capabilities.
These systems help position cartons correctly before they enter the sealing process and support consistent automatic operation.
Side Pressure Rollers
Side pressure rollers help control the carton flaps as they are closed, supporting reliable flap positioning before the tape is applied.
Automatic Tape Application
The machine automatically applies two strips of pressure-sensitive adhesive tape along the centre line of the upper and lower carton surfaces.
SIAT’s K-Series taping units can process tape materials including PVC, PP/PET and paper, subject to the selected taping-unit configuration.
Easy Integration into Packaging Lines
The SM44-HS is designed for integration into automated packaging systems.

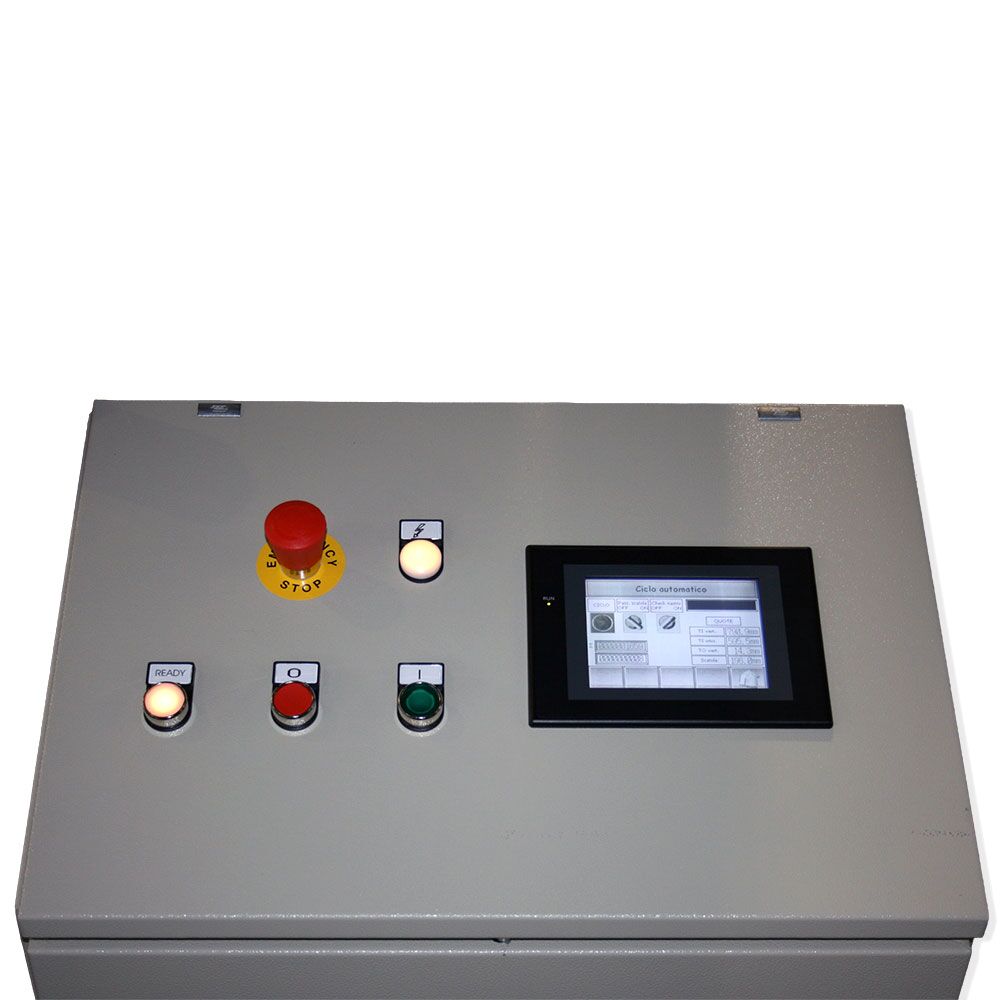

The machine features sensing, centring, indexing and PLC functionality to support communication and signal exchange with upstream and downstream equipment.
Safety Protection
The machine incorporates safety fencing and protection systems, including safety interlocks designed to stop or disconnect relevant machine functions when access protection is opened.
This supports safer operation within an automated production environment.
Why Choose the SIAT SM44-HS?
Automate Random Carton Sealing
The biggest advantage of the SM44-HS is its ability to process random carton sizes automatically.
For manufacturers handling multiple SKUs or variable carton dimensions, this can remove the need for manual machine adjustments between production runs.
Reduce Manual Intervention
The automatic four-flap folding system means operators do not need to manually close the top carton flaps before sealing.
This can free operators to perform other tasks within the production process.
Improve End-of-Line Productivity
With a capacity of up to 10 cartons per minute for the SM44-HS, the machine can provide a substantial increase in carton-sealing productivity compared with manual sealing processes.
Maintain Consistent Sealing
Automated flap closing and tape application help provide a repeatable sealing process across different carton formats.
Reduce Changeover Requirements
Random adjustment means cartons of different dimensions can be processed without requiring the operator to manually reset the machine for every box size.
Integrate with Automated Packaging Equipment

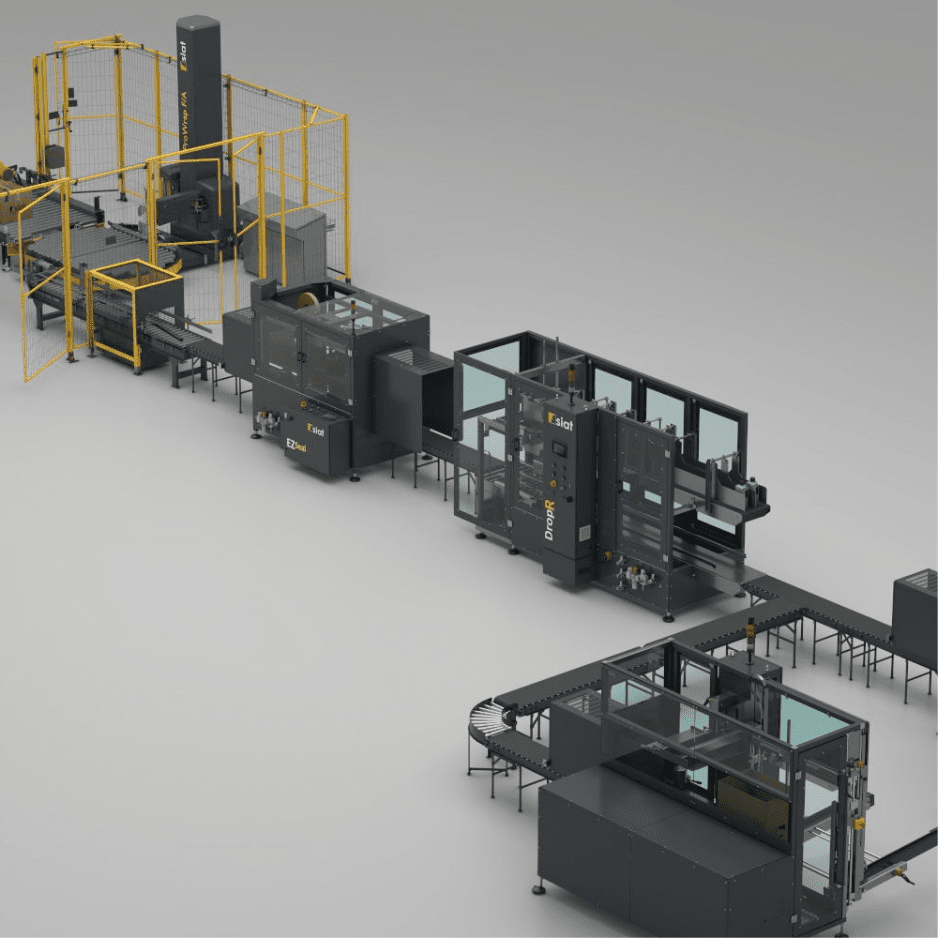

The SM44-HS is designed to work as part of a wider packaging line and can be positioned downstream from equipment such as case packers and conveyors.
It can also feed into downstream equipment such as pallet wrappers or palletising systems.
Choose the Larger SM446-HS for Larger Cartons
For businesses handling larger carton formats, the SM446-HS extends the capability of the range, accommodating cartons up to approximately 800 × 650 × 650 mm.
Benefits of the SIAT SM44-HS
The SM44-HS can help manufacturers:
- Automate carton sealing
- Process random carton sizes
- Eliminate frequent manual machine adjustments
- Automatically fold carton flaps
- Reduce repetitive operator intervention
- Seal carton tops and bottoms consistently
- Increase end-of-line productivity
- Improve carton presentation
- Reduce manual handling
- Support multiple SKUs and carton formats
- Integrate carton sealing into an automated packaging line
- Improve packaging-line efficiency
- Support future packaging automation
SIAT SM44-HS vs SM446-HS
The SM44-HS range includes configurations designed for different carton sizes.
SIAT SM44-HS
The standard SM44-HS is designed for cartons up to approximately:
600 mm L × 500 mm W × 500 mm H
A low-box configuration is also available, allowing the machine to process cartons with lower minimum heights.
SIAT SM446-HS
The larger SM446-HS is designed for bigger cartons, with a maximum carton size of approximately:
800 mm L × 650 mm W × 650 mm H
Its maximum production rate is approximately 8 cartons per minute, compared with up to 10 cartons per minute for the SM44-HS.
The appropriate model depends on carton dimensions, production requirements and the overall packaging-line configuration.
Applications for the SIAT SM44-HS
The SM44-HS is suited to industries where carton sizes can vary and automated sealing is required.
Potential applications include:
- E-commerce
- Logistics and distribution
- Food and beverage
- Wine and spirits
- Pharmaceutical manufacturing
- Personal care
- Household and consumer products
- General manufacturing
The random-format capability makes the machine particularly useful where different products and carton sizes are processed through the same packaging line.
Talk to Packserv About the SIAT SM44-HS
If you are looking to automate carton sealing and regularly process cartons of different sizes, the SIAT SM44-HS provides a flexible solution that combines random carton adjustment, automatic flap folding and top-and-bottom sealing.
Contact Packserv to discuss your carton dimensions, production requirements and packaging-line configuration.
