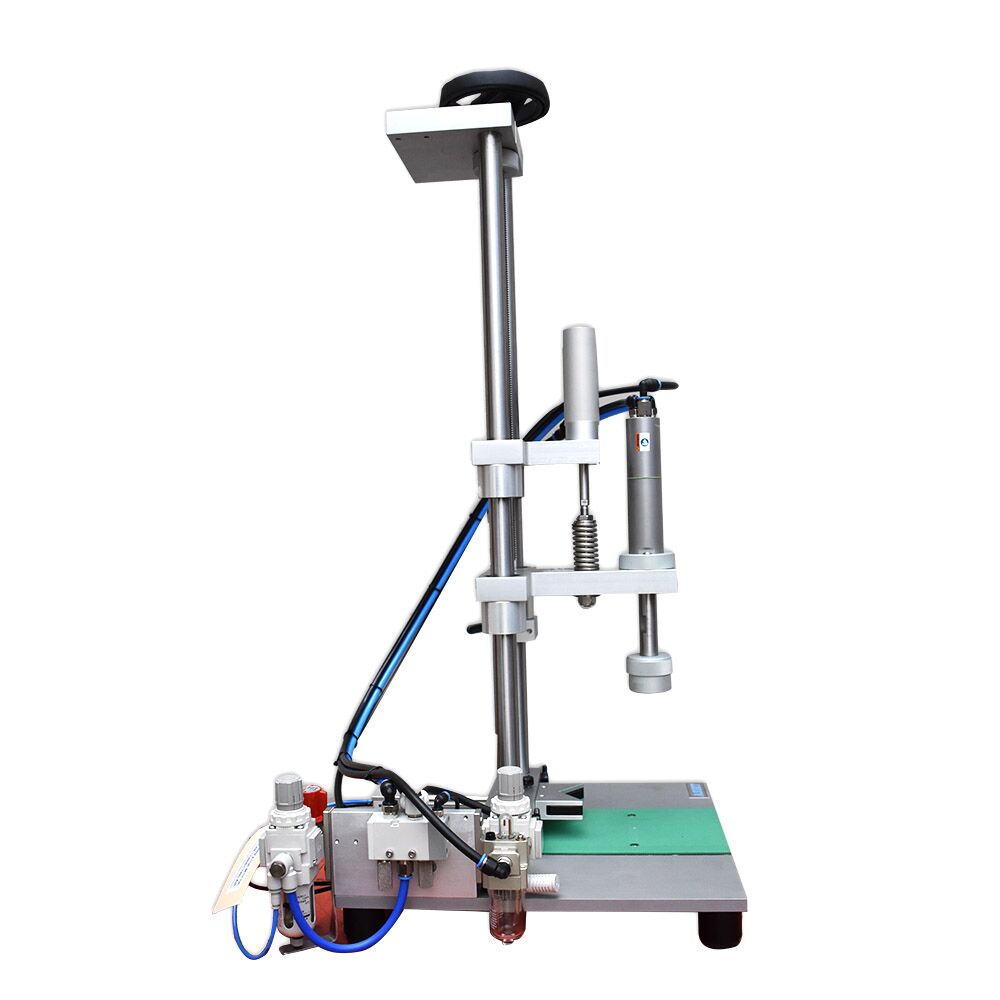

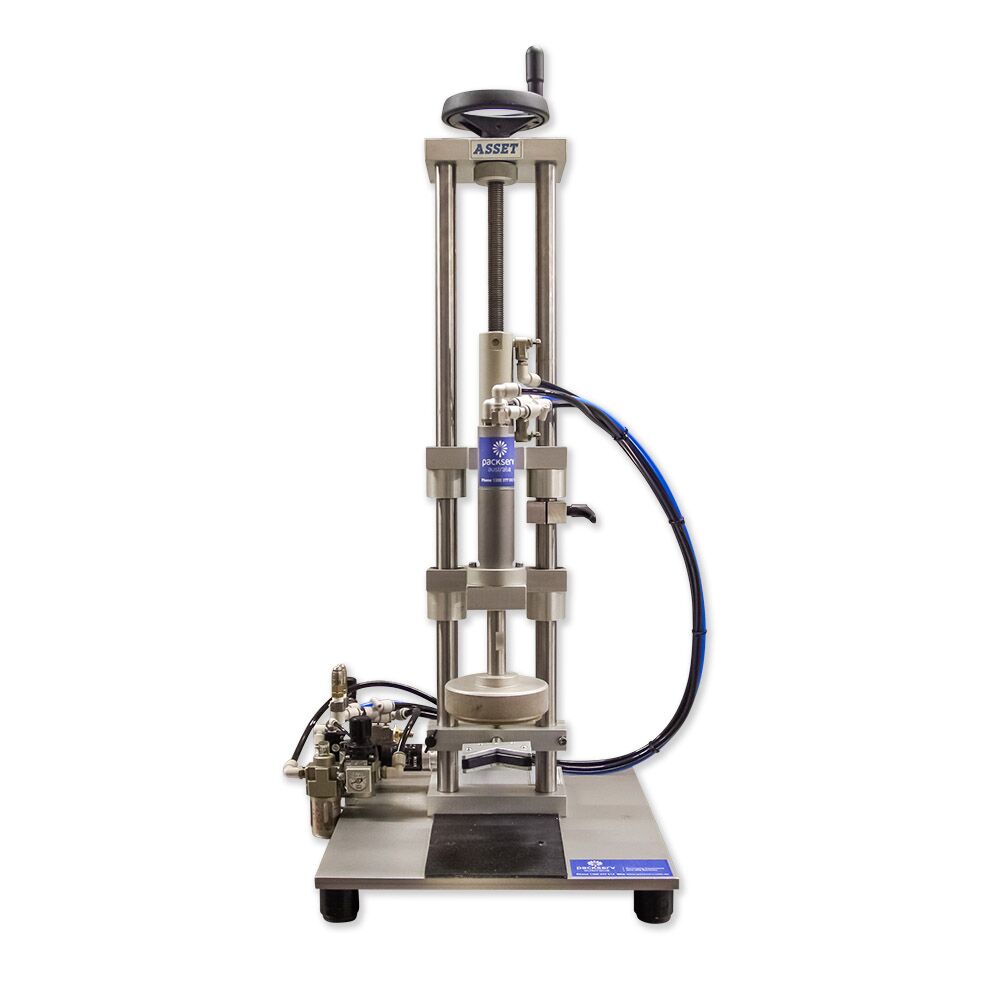

The Asset Semi-Automatic, or benchtop model AC-SA Cap Tightener has been the industry standard in semi-automatic cap tightening machinery for over 20 years.
Equally at home in small start-up packing operations or in production units of major corporations, the AC-SA is low cost, versatility and precise operation have made it a favourite in a wide range of demanding applications. If your production requirement increases, the semi-automatic machine can be converted to a fully automatic conveyor-mounted model.
From 10mm eye-dropper or cosmetic caps to 100mm closures for wide-mouth food jars, the AC-SA’s simple controls enable fast set-ups and typical throughputs of around 15 to 30 units per minute.
A single hand-wheel and locking ring allows quick height adjustment for different containers. The universal container guide, adjustable for container size and shape, has an integral activating switch plate another Asset exclusive feature. Simply place a container against the guide and the tightening chuck automatically descends, tightens, and retracts.
Increase or decrease the tightening dwell time to suit the particular application by a turn of the pneumatic timer knob. Simply adjust to give adequate time for the cap to wind down the thread and stop. Adjust the tightening torque by a turn of the air pressure regulator knob.
The range of 5 standard interchangeable tightening chuck sizes and 3 standard liner materials will handle most capping applications. Chucks are also available for specialised closures such as Tamper-Tel, eye dropper, etc. For trigger pump sprays, cream dispensers and mist pumps, and other closures which cannot be tightened from above, the Asset Pumptite Unit is available as a bolt-on optional item.
The AC-SA Semi-Automatic has all pneumatic operation so it’s safe with flammable products. The unit is supplied ready to run, requiring only a supply of compressed air.
“The AC-SA Asset Packaging Machine model has been discontinued. Please see our latest product here.”
